Combining high quality metals with state-of-the-art heat treating and grinding techniques, Bottom Knives also known as Female Knives are secured to the shaft in a number of ways for quick, easy width adjustments. In the case of the set screw locking knives, a brass set screw is added to the knife’s outside diameter to allow the operators to tighten it into place once the desired width has been achieved. The brass set screw is selected so no damage is done to the shaft when locking the bottom knives in place. This design provides a secure locking action of the bottom knife. We offer different materials as well as carbide ring models to provide optimum knife life. Motorized units are also available.

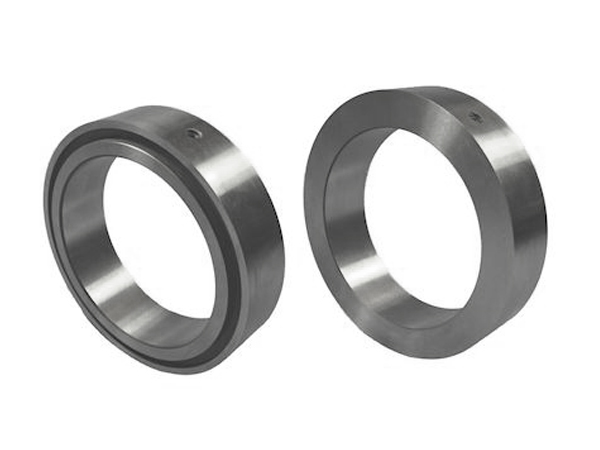

Bottom/Female Circular Knives – Set Screw
- Quick & easy width adjustments
- Precision slit widths
- Motorized units available
- Carbide ring models available for optimum knife life
Product Details
| Item # | Item Name | Outside Diameter | Inside Diameter | Thickness | Material | Dimensions |
|---|---|---|---|---|---|---|
| 22096 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 60.3 mm | 31.75 mm | 15.8 mm | 52100 | 2.375 x 1.250 x 0.625 in |
| 22860 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 60.3 mm | 31.75 mm | 12.7 mm | 52100 | 2.375 x 1.250 x 0.500 in |
| 22210 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 101.6 mm | 76.2 mm | 31.6 mm | 52100 | 4.000 x 3.000 x 1.246 in |
| 221039 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 101.6 mm | 76.2 mm | 19 mm | D2 | 4.000 x 3.000 x 0.750 in |
| 221144 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 101.6 mm | 76.2 mm | 22 mm | 52100 | 4.000 x 3.000 x 0.875 in |
| 22516 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 127 mm | 101.6 mm | 25.4 mm | D2 | 5.000 x 4.000 x 1.000 in |
| 22498 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 152.4 mm | 101.6 mm | 25.4 mm | D2 | 6.000 x 4.000 x 1.000 in |
| 22869 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 152.4 mm | 127 mm | 25.4 mm | D2 | 6.000 x 5.000 x 1.000 in |
| 22874 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 203.2 mm | 152.4 mm | 39.88 mm | D2 | 8.000 x 6.000 x 1.570 in |
| 221059 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 90.8 mm | 60 mm | 12.7 mm | 52100 | 3.575 x 2.362 x 0.500 in |
| 22199 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 90.8 mm | 60 mm | 19.05 mm | D2 | 3.575 x 2.362 x 0.750 in |
| 22022 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 90.8 mm | 60 mm | 25.4 mm | D2 | 3.575 x 2.362 x 1.000 in |
| 221062 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 101.3 mm | 75 mm | 25 mm | D2 | 3.988 x 2.953 x 0.984 in |
| 22119 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 80 mm | 14.9 mm | 52100 | 4.134 x 3.149 x 0.591 in |
| 22274 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 90 mm | 18.44 mm | 52100 | 4.134 x 3.543 x 0.726 in |
| 22065-02 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 90 mm | 25.4 mm | 52100 | 4.134 x 3.543 x 1.000 in |
| 22216 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 90 mm | 50 mm | 52100 | 4.134 x 3.543 x 1.969 in |
| 22603 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 90 mm | 25 mm | 52100 | 4.134 x 3.543 x 0.984 in |
| 22215 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 105 mm | 90 mm | 50 mm | 52100 | 4.134 x 3.543 x 1.969 in |
| 22858 | Bottom Knives – Fixing to a Plain Shaft – Set Screw | 125 mm | 100 mm | 18 mm | 52100 | 4.921 x 3.937 x 0.709 in |
