Combining high quality metals with state-of-the-art heat treating and grinding techniques, Bottom Knives also known as Female Knives are secured to the shaft in a number of ways for quick, easy width adjustments. In the case of plain bore knives, they are normally stacked on an arbor or shaft spaced by precision spacers and compressed by locking nuts to achieve a close tolerance slit width. They can also be supported by a pneumatically inflated shaft to avoid using spacers and ease the set up process. These knives are manufactured to a very close thickness tolerance to achieve precision slit widths when spaced by precision spacers. We offer different materials as well as carbide ring models to provide optimum knife life. Motorized units are also available.

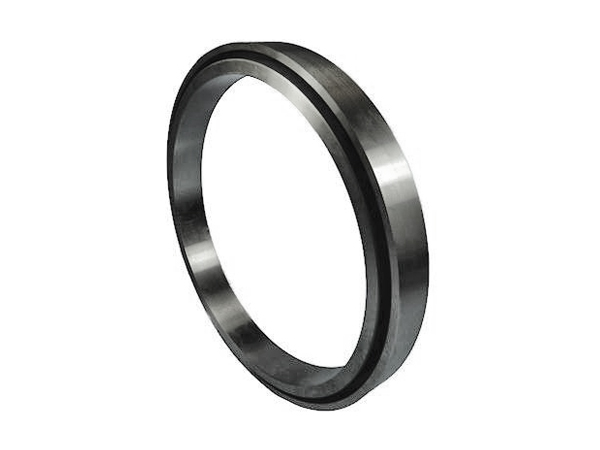

Bottom/Female Circular Knives – Plain Bore
- Quick & easy width adjustments
- Precision slit widths
- Motorized units available
- Carbide ring models available for optimum knife life
Product Details
| Item # | Item Name | Outside Diameter | Inside Diameter | Thickness | Material | Dimensions |
|---|---|---|---|---|---|---|
| 22440 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 65 mm | 38.6 mm | 3.7 mm | 52100 | 2.550 x 1.520 x 0.147 in |
| 02304 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 89 mm | 38 mm | 1.78 mm | 52100 | 3.500 x 1.500 x 0.070 in |
| 22186 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 216 mm | 177.8 mm | 25.4 mm | D2 | 8.500 x 7.000 x 1.000 in |
| 22548 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 216 mm | 177.8 mm | 25.4 mm | 52100 | 8.500 x 7.000 x 1.000 in |
| 22050 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 60 mm | 40 mm | 10 mm | 52100 | 2.362 x 1.575 x 0.394 in |
| 22094 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 75 mm | 60 mm | 15 mm | 52100 | 2.953 x 2.362 x 0.591 in |
| 22400 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 77 mm | 60 mm | 10 mm | 52100 | 3.031 x 2.362 x 0.394 in |
| 22613 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 80 mm | 60 mm | 6.35 mm | 52100 | 3.149 x 2.362 x 0.250 in |
| 22508 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 80 mm | 60 mm | 10 mm | 52100 | 3.149 x 2.362 x 0.394 in |
| 22689 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 80 mm | 60 mm | 9.525 mm | 52100 | 3.149 x 2.362 x 0.375 in |
| 22406 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 90.8 mm | 60 mm | 6.342 mm | D2 | 3.575 x 2.362 x 0.250 in |
| 22416 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 90.8 mm | 60 mm | 6.35 mm | 52100 | 3.575 x 2.362 x 0.250 in |
| 22147 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 90.8 mm | 60 mm | 9.525 mm | 52100 | 3.575 x 2.362 x 0.375 in |
| 22368 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 101.6 mm | 60 mm | 9.52 mm | 52100 | 4.000 x 2.362 x 0.375 in |
| 22592 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 105 mm | 90 mm | 10 mm | 52100 | 4.134 x 3.543 x 0.393 in |
| 22563 | Bottom Knives – Fixing to a Plain Shaft – Plain Bore | 110 mm | 90 mm | 10 mm | 52100 | 4.331 x 3.543 x 0.393 in |
