Combining high quality metals with state-of-the-art heat treating and grinding techniques, Bottom Knives also known as Female Knives are secured to the shaft in a number of ways for quick, easy width adjustments. In the case of the eccentric locking knife, the knife is turned with a wrench counter to its direction of rotation causing a series of steel balls to collapse a ring onto the arbor or knife shaft in the center of the bore. This design provides a secure locking action while minimizing the radial run out of the bottom knife. We offer different materials as well as carbide ring models to provide optimum knife life. Motorized units are also available.

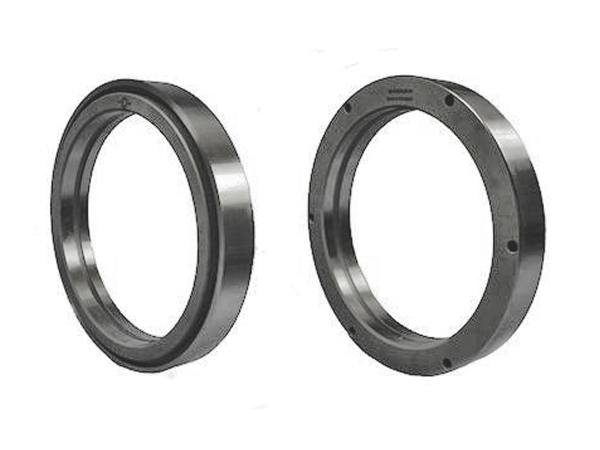

Bottom/Female Circular Knives – Eccentric Locking
- Quick & easy width adjustments
- Secure locking action using a specialized wrench
- Motorized units available
- Carbide ring models available for optimum knife life
Product Details
| Item # | Item Name | Outside Diameter | Inside Diameter | Thickness | Material | Dimensions |
|---|---|---|---|---|---|---|
| 02029-01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 46 mm | 25 mm | 10 mm | 52100 | Use Spanner Wrench: 02412 in |
| 02105- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 60 mm | 30 mm | 10 mm | 52100 | Use Spanner Wrench: 02208 in |
| 02353 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 60 mm | 35 mm | 9.52 mm | 52100 | Use Spanner Wrench: 02208 in |
| 02062- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 77 mm | 45 mm | 10 mm | 52100 | Use Spanner Wrench: 02346 in |
| 02150- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 77 mm | 45 mm | 15 mm | 52100 | Use Spanner Wrench: 02346 in |
| 02190 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 77 mm | 45 mm | 20 mm | 52100 | Use Spanner Wrench: 02346 in |
| 02129- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 77 mm | 60 mm | 10 mm | 52100 | Use Spanner Wrench: 02738 in |
| 02234 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 90 mm | 50.8 mm | 12.7 mm | 52100 | Use Spanner Wrench: 02738 in |
| 02030- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 90 mm | 60 mm | 15 mm | 52100 | Use Spanner Wrench: 02381 in |
| 02333 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 90 mm | 60 mm | 25.4 mm | 52100 | Use Spanner Wrench: 02381 in |
| 02175 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 101.6 mm | 60 mm | 9.52 mm | 52100 | Use Spanner Wrench: 02529 in |
| 02287 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 101.6 mm | 60 mm | 12.7 mm | 52100 | Use Spanner Wrench: 02529 in |
| 02598 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 105 mm | 60 mm | 15 mm | 52100 | Use Spanner Wrench: 02529 in |
| 02395 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 105 mm | 60 mm | 20 mm | 52100 | Use Spanner Wrench: 02529 in |
| 02031- 01 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 105 mm | 80 mm | 15 mm | 52100 | Use Spanner Wrench: 02327 in |
| 02429 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 105 mm | 90 mm | 25.4 mm | 52100 | Use Spanner Wrench: 021472 in |
| 02376 | Bottom Knives – Fixing to a Plain Shaft – Eccentric Locking | 125 mm | 100 mm | 18 mm | 52100 | Use Spanner Wrench: 02531 in |
